In Stock Now

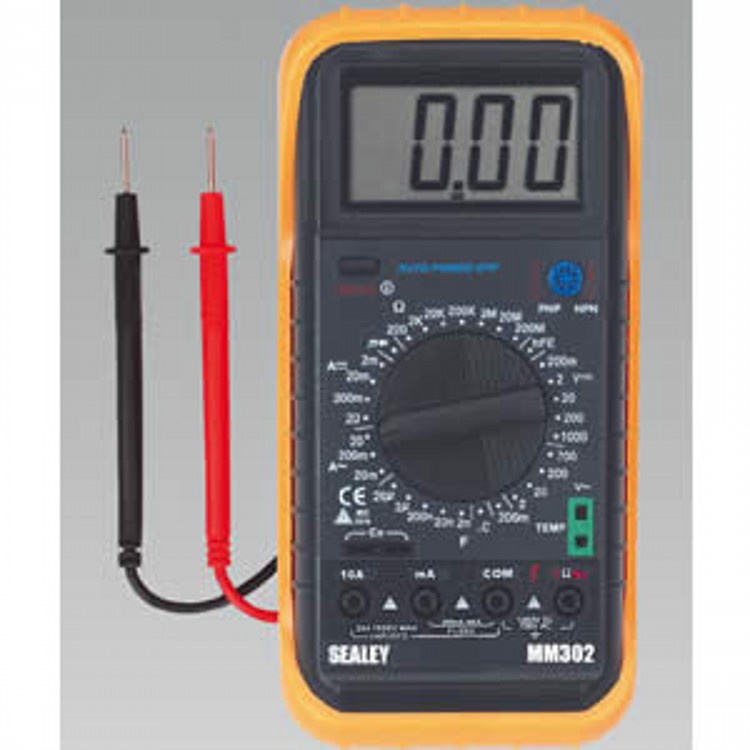

Professional tradesman?s multimeter with 25mm LCD display. Durable case with protective boot, probe storage and integral two-position stand. Features heavy-duty circuitry with auto over-range display, auto zero, auto power-off, audible continuity warning and polarity protection on all necessary ranges. Supplied with probe test leads and temperature probe.
Measures:
? AC and DC Voltage
? AC and DC Current
? Resistance
? Capacitance
? Temperature
? Diode Test
? Audible Continuity
? Transistor Test Voltage DC: 0-200mV, 2V, 20V, 200V(all ±0.5%), 1000V(±0.8%)
Voltage AC: 0-200mV (±1.2%), 2V, 20V, 200V (all ±0.8%),700V (±1.2%)
Current DC: 0-2mA, 20mA (all ±0.8%), 200mA (±1.5%), 20A (both ±2%)
Current AC: 0-20mA (±1%), 200mA (±1.8%), 20A (±3%)
Capacitance: 0-2nF, 20nF, 200nF, 2μF, 20μF (all ±4%)
Resistance: 0-200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (all ±0.8%), 20MΩ (±1%), 200 MΩ (±5%)
Continuity, Audible: <50Ω
Diode Check: Forward voltage shown
Transistor Test: NPN & PNP, hFE (@ 10μAIb & 3.2Vce) shown
Temperature: -20 to 1000°C(-20 to 0°C ±5%, 0 to 400°C ±1%, 400 to 1000°C ±2%)
